Children's Light up Puzzle

Children's Light up Puzzle

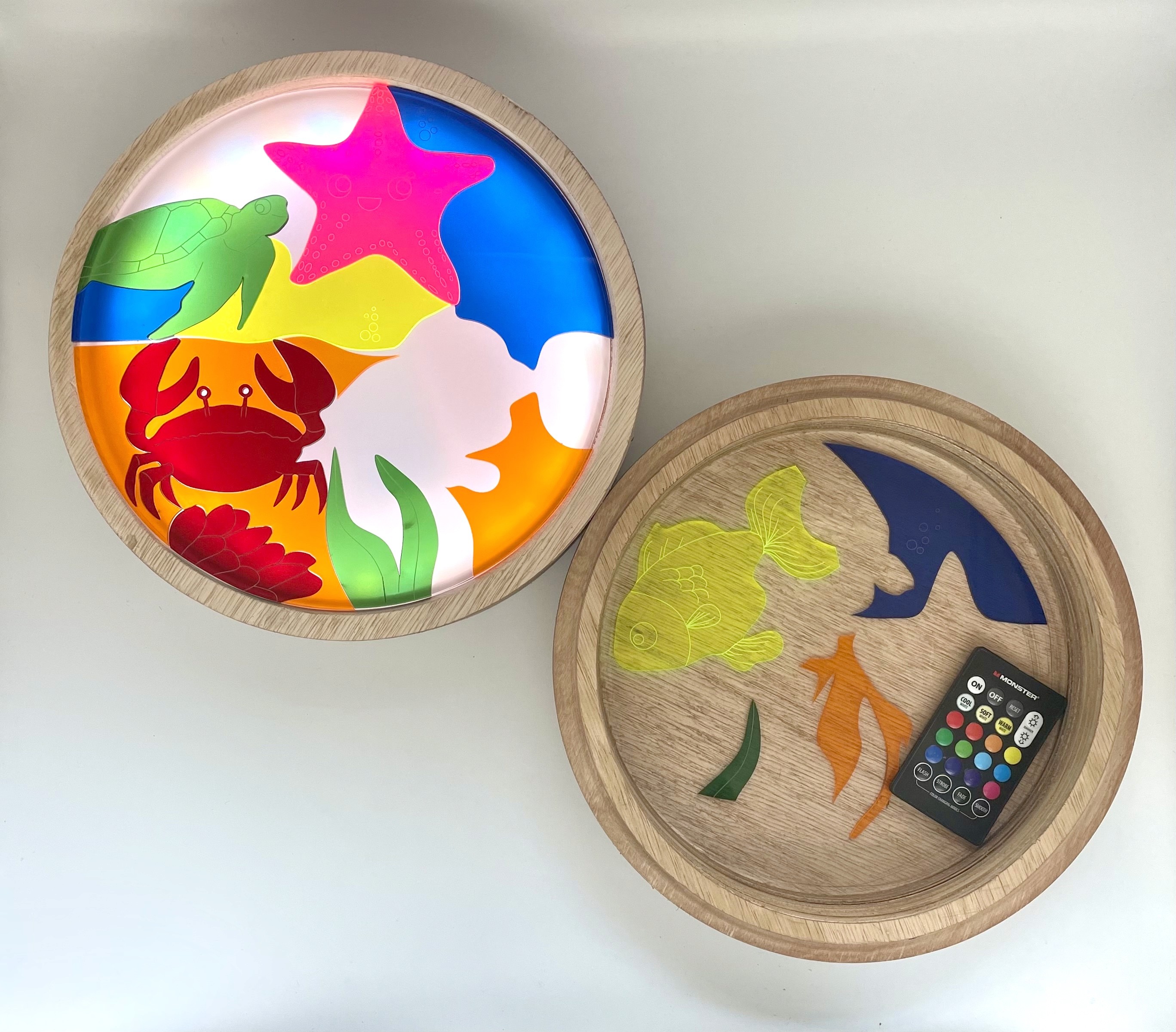

Using a user-centered approach, the goal was to design an engaging children's toy that puts a fun twist on the traditional puzzle by incorporating light as an interactive element.

Industry

Industry

Consumer Product
Consumer Product

Materials

Materials

Plywood
Acrylic
LED lights
Plywood
Acrylic
LED lights

Process

Process

Laser Cutter
CNC Machine
Laser Cutter
CNC Machine

Dimensions

Dimensions

Box Diameter:
10"
Box Diameter:
10"

Created

Created

March 2023
March 2023

Design Process

Design Process

I began the design process by interviewing both parents and children to understand the key elements that made their favorite toys enjoyable. From these conversations, I discovered that children particularly enjoyed toys with puzzle elements and those that allowed for building. Additionally, I drew inspiration from my nieces and nephews, who spent hours playing with flashlights in the dark. Combining these insights, I aimed to create a fun, engaging toy that blended the interactivity of puzzles with the playfulness of light.

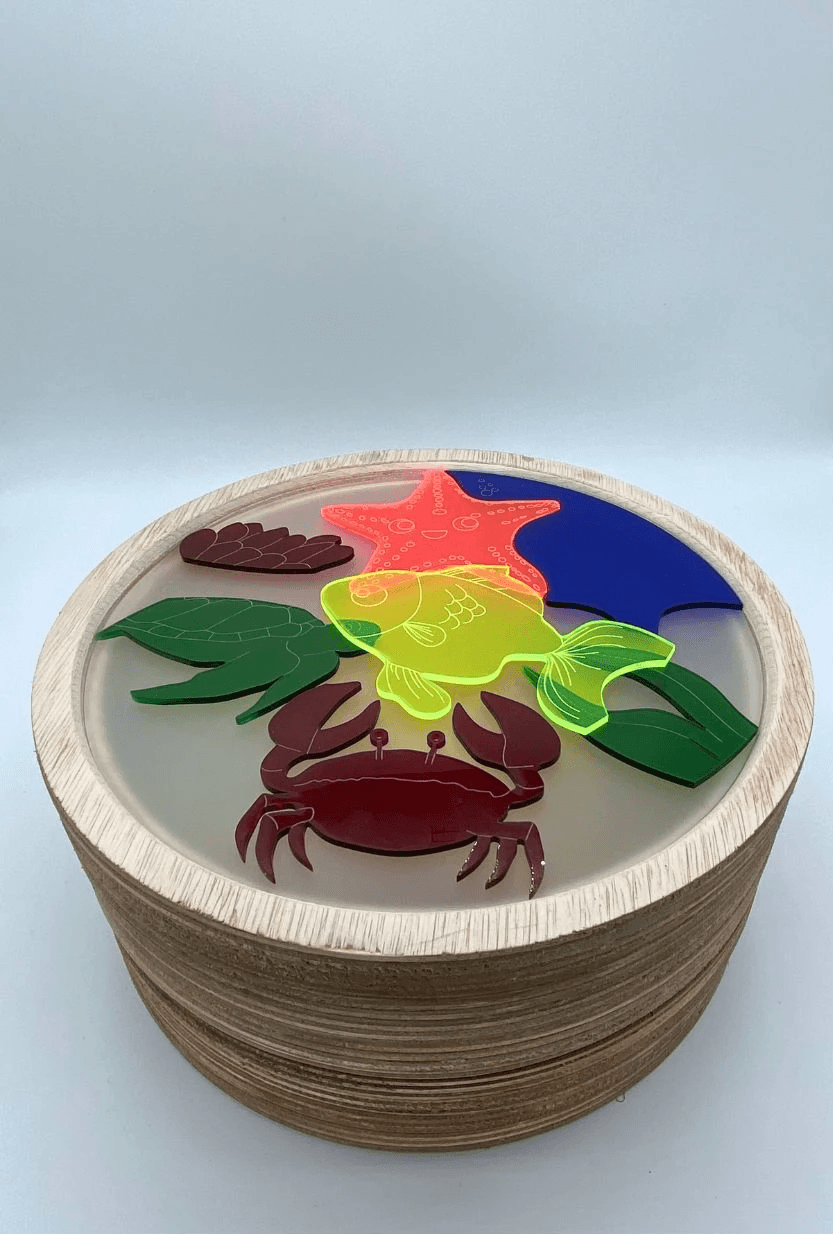

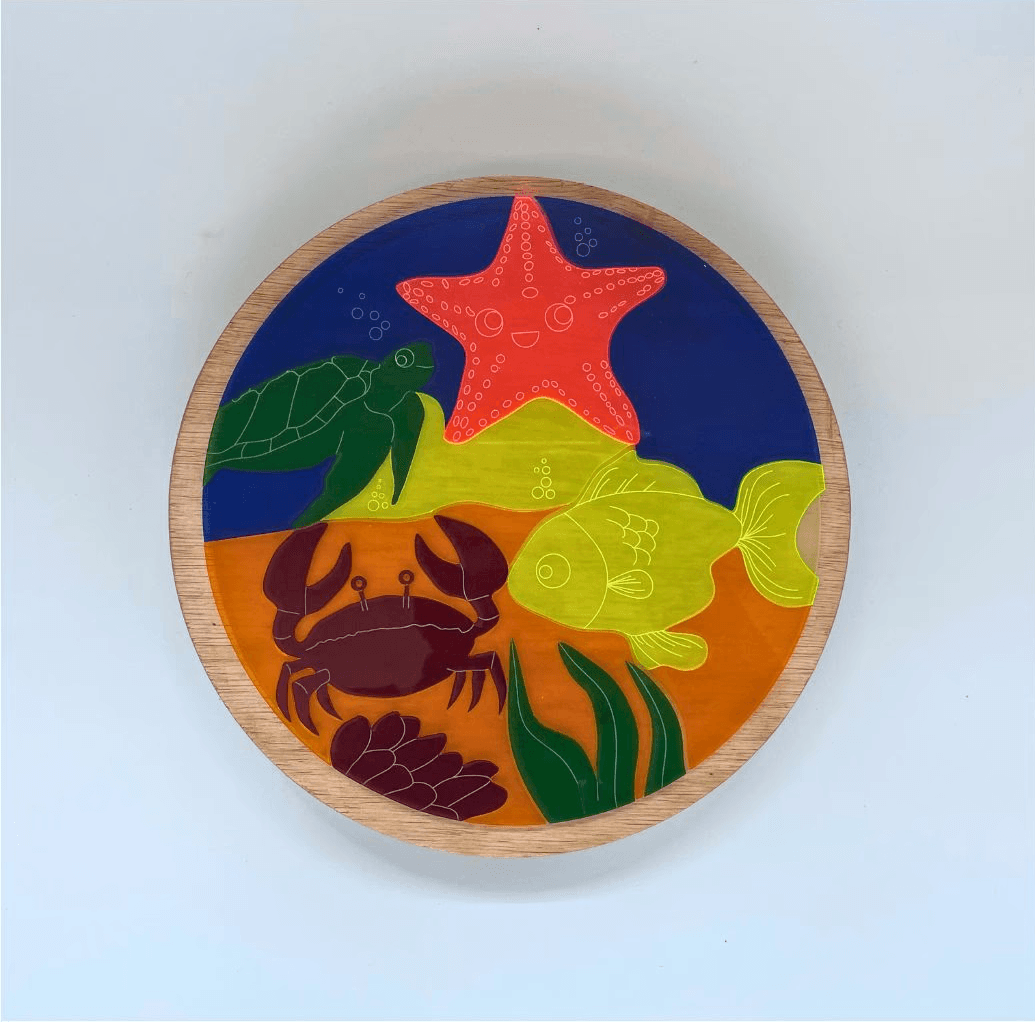

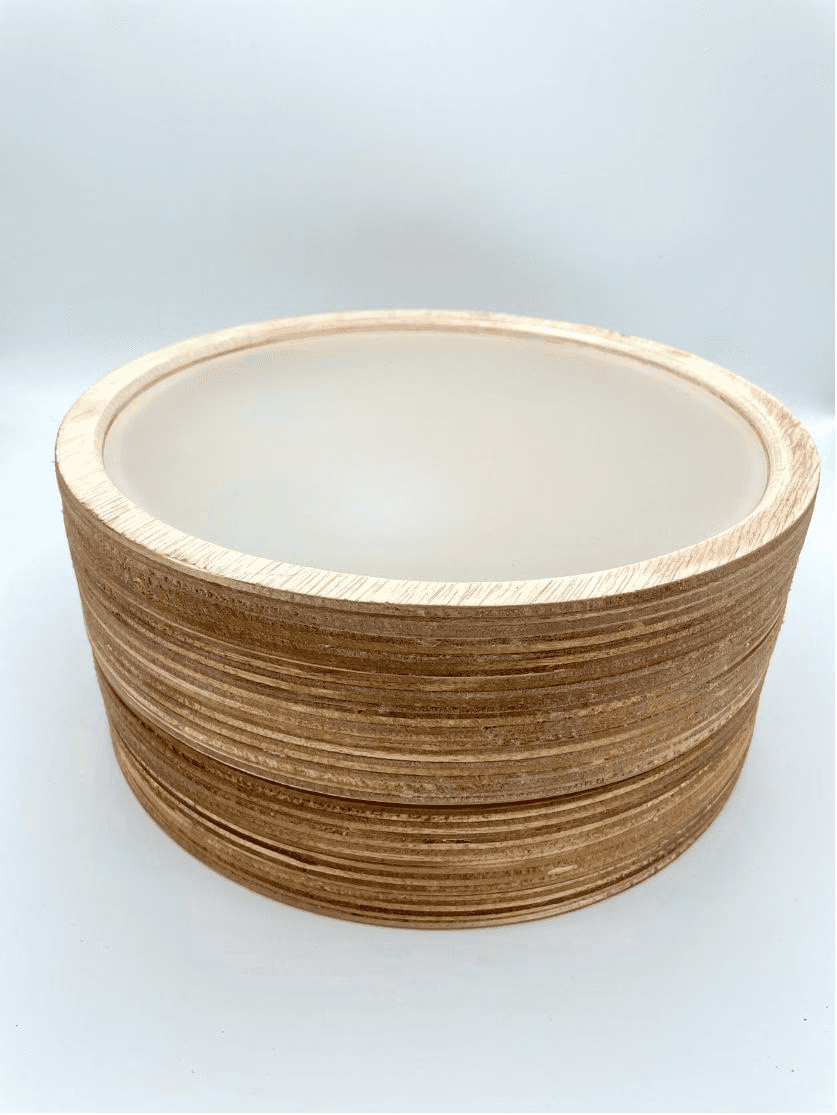

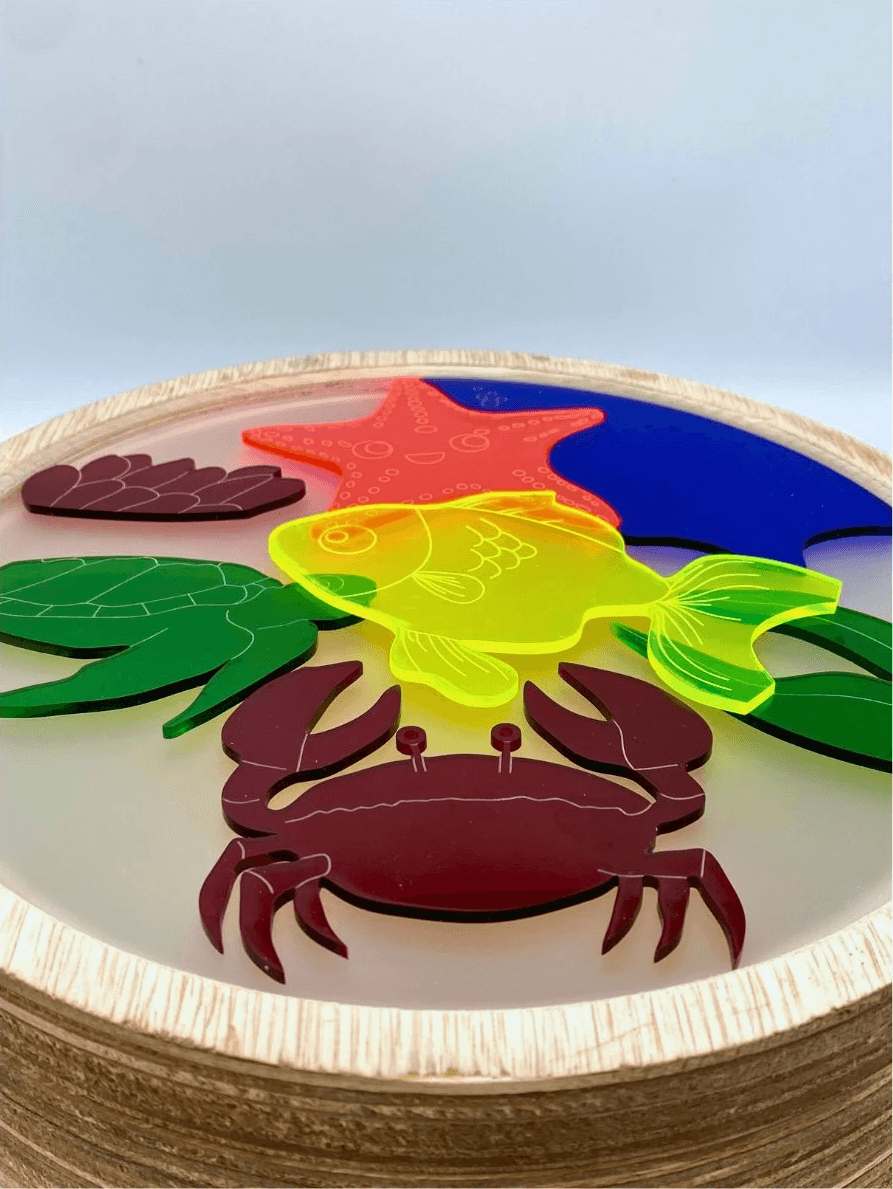

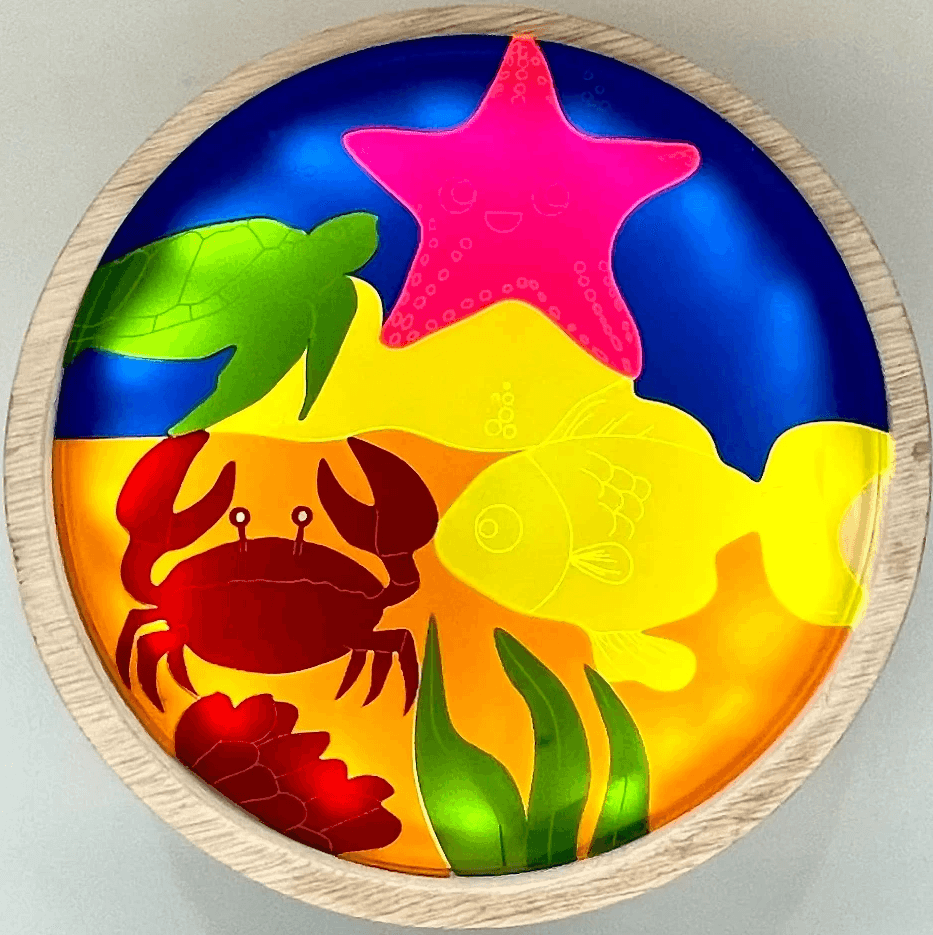

To build the wooden base of the toy, I CNC-machined wooden rings, which I then assembled using wood glue. I designed a laser-cut frosted acrylic space to hold the final puzzle. Inside the box, LED light strips were used to illuminate the puzzle, adding an interactive lighting element. For the puzzle pieces, I laser-cut and engraved colored acrylic to create unique, tactile shapes that fit together seamlessly.
